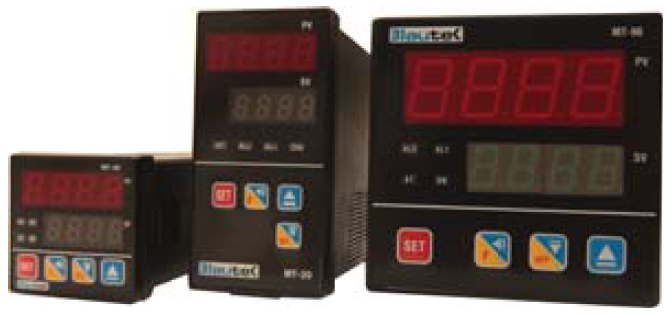

MT Series Temperature Controllers
Single loop single output digital temperature controller, 1/16, 1/8 and 1/4 DIN, with one 5A SPST mechanical relays and two 3A SPST alarm relays. Universal inputs include T/C, RTD, accepts 90-256 VAC operational power. PID, ON/OFF and manual control plus Fuzzi Logic. Stand alone model no serial communication. Mounting clips are included.
Specifications:· Agency Approvals: CE, RU
· Input Voltage: 90 to 265VAC 50/60Hz
· Sensor Type: K/J/PT100 Selectable
· Control Output: Relay SPDT 5A 250VAC
· Alarm Output: (2) Relay SPST 5A 250VAC
· Control Mode: Auto-Tune PID + Fuzzy PID or On/OFF, Heating/Heating-Cooling
· Sampling rate: 0.1 sec.
Part Number | Size | Input | Output | Alarms | Price |
---|---|---|---|---|---|
MT-48-R | 1/16 Din 48x48mm | K/J/PT100 | Relay | 2-Relay | $80.00 |
MT-48-R-MA | 1/16 Din 48x48mm | 4-20ma | Relay | 2-Relay | $80.00 |
MT-48-V | 1/16 Din 48x48mm | K/J/PT100 | 12Vdc-50ma | 2-Relay | $80.0 |
MT-48-L | 1/16 Din 48x48mm | K/J/PT100 | 4-20ma | 2-Relay | $80.0 |
MT-20-R | 1/8 Din 48x96mm | K/J/PT100 | Relay | 2-Relay | $89.00 |
MT-20-V | 1/8 Din 48x96mm | K/J/PT100 | 12Vdc-50ma | 2-Relay | $89.00 |
MT-20-L | 1/8 Din 48x96mm | K/J/PT100 | 4-20ma | 2-Relay | $105.00 |
MT-96-R | 1/8 Din 48x96mm | K/J/PT100 | Relay | 2-Relay | $99.00 |
MT-96-V | 1/4 Din 96x96mm | K/J/PT100 | 12Vdc-50ma | 2-Relay | $99.00 |
MT-96-L | 1/4 Din 96x96mm | K/J/PT100 | 4-20ma | 2-Relay | $106.00 |
NOTE: We have other products available that are not displayed, so please do not hesitate to call or send us an e-mail.
